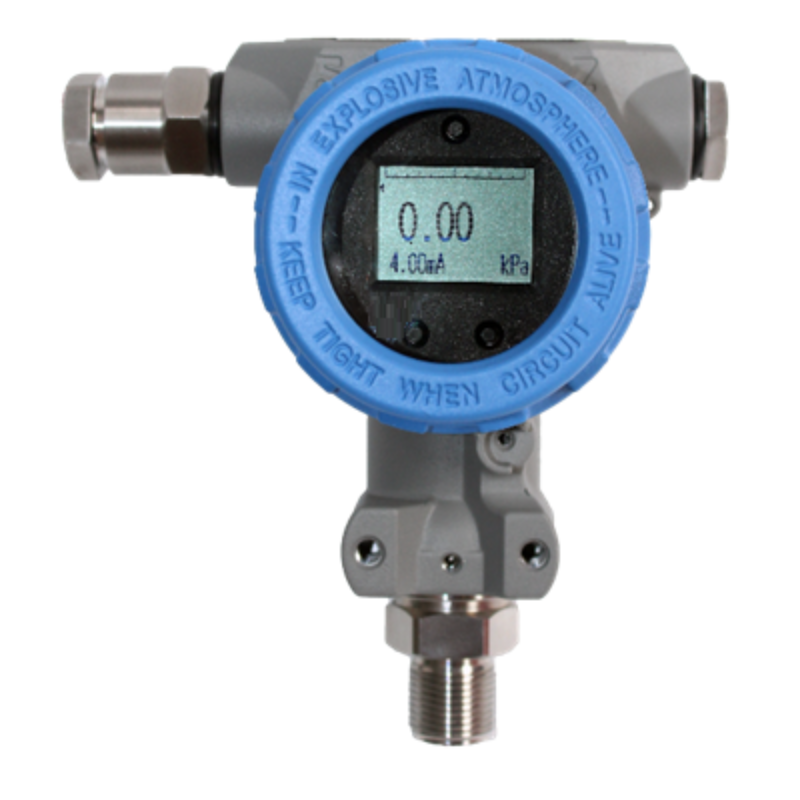

Smart Gauge / Absolute Pressure Transmitter

The ADDA-P Series smart gauge / absolute pressure transmitter uses monocrystalline silicon MEMS sensing technology with static pressure and temperature compensation. It supports pressure and level measurement. Available ranges and accuracy depend on the selected pressure type and sensor configuration.

Authoritative Qualification Certifications

We hold ISO quality certification, national high-tech enterprise qualification, China measuring instrument type approval, and explosion-proof and safety certifications to support reliable product quality.

Custom Engineering

Configurable materials, connections, signals, displays, and installation solutions for different process environments.

Product Features

The ADDA-P Series uses a monocrystalline silicon sensor chip manufactured with advanced German MEMS technology and a dual-beam suspended design. It provides high accuracy, high overpressure resistance, and stable performance. An embedded signal processing module combines static pressure and temperature compensation to maintain measurement accuracy and long-term stability across a wide range of pressure and temperature conditions.

Monocrystalline silicon piezoresistive technology provides stable performance and accuracy up to 0.075%F.S.
Turndown ratio up to 100 : 1.
A high-performance EMC protection circuit module reduces the influence of electromagnetic interference on the output.
High stability: ±0.2% Span/5 years.

Applications

Pressure and level measurement.

Measuring Medium

Media compatible with the wetted materials.

Performance Specifications

Accuracy	±0.1%, ±0.2% , ±0.5% Upper Range Limit, see specifications for details
Range	20kPa~100MPa, see selection table for details
Annual Stability	±0.1% Span/year
Ambient Temperature Influence	see specifications for details
Voltage Influence	When the supply voltage varies within 10.5V/16.5V~36V DC, changes in zero point and span shall not exceed ±0.001%URL/V
Mounting Position Influence	Transmitter installation may cause zero error, this error can be corrected by zero adjustment, with no effect on accuracy
Vibration Influence	Tested according to GB/T18271.3/IEC61298-3 test, < 0.1%
Output Signal	4mA~20mADC+HART Modbus-RTU/RS485
Protection Grade	IP67

Range

Pressure Type	Nominal Range	Minimum Range	Lower Range Limit (LRL)	Upper Range Limit (URL)	Overload
G	40kPa	2kPa	-40kPa	40kPa	1MPa
250kPa	12.5kPa	-100kPa	250kPa	4MPa
1MPa	50kPa	-100kPa	1MPa	6MPa
3MPa	150kPa	-0.1MPa	3MPa	15MPa
10MPa	500kPa	-0.1MPa	10MPa	20MPa
40MPa	2MPa	-0.1MPa	40MPa	80MPa
A	40kPa	20kPa	0kPa	40kPa	1MPa
250kPa	50kPa	0kPa	250kPa	4MPa
1MPa	100kPa	0kPa	1MPa	6MPa
3MPa	300kPa	0kPa	3MPa	10MPa
10MPa	1MPa	0kPa	10MPa	20MPa
High and low limit setting requirements: lower range value (LRV) and upper range value (URV) must be set within the lower and upper range limits, ｜URV-LRV｜≥ Minimum Range

Accuracy

Linear Output Accuracy	G	TD<=5	±0.1% Span
Based on standards and reference test conditions, including best fit straight line (BFSL), hysteresis, repeatability. Calibration temperature :20 degrees C ±5 degrees C.
±0.075% Span	250kPa , 1 MPa, 3MPa, 10MPa, 40MPa
TD>5	± (0.005+0.02TD) % Span	40kPa
± (0.002+0.015TD) % Span	250kPa, 1 MPa, 3MPa, 10MPa, 40MPa
A	TD<=5	±0.2% Span	40kPa
±0.1% Span	250kPa, 1MPa, 3MPa, 10MPa
TD>5	± (0.005+0.035TD) % Span	40kPa
± (0.005+0.02TD) % Span	250kPa, 1MPa, 3MPa, 10MPa
Note: TD (Turn down) means turndown ratio , TD= maximum range / current range

Ambient Temperature Influence

Pressure Type	Influencing Quantity	Range
G	± (0.075+0.005TD) % 20 degrees C of Span	40kPa, 250kPa 1MPa, 3MPa, 10MPa, 40MPa
A	± (0.1+0.005TD) % 20 degrees C of Span	40kPa, 250kPa 1MPa, 3MPa, 10MPa

Pressure Type

Influencing Quantity

Range

± (0.075+0.005TD) % 20 degrees C of Span

40kPa, 250kPa

1MPa, 3MPa, 10MPa, 40MPa

± (0.1+0.005TD) % 20 degrees C of Span

40kPa, 250kPa

1MPa, 3MPa, 10MPa

Environmental Conditions

Hazardous Area	PCEC	Certificate No.: CE20.2148X Certificate No.: CE23.0612X Ex ia IIC T6 Ga Ex db IIC T6 Gb Ex tb IIIC T80 degrees C Db
Item	Condition
Operating Ambient Temperature Range	-40 degrees C ~85 degrees C, LCD display: -20 degrees C ~70 degrees C
Storage Ambient Temperature Range	-40 degrees C ~100 degrees C, LCD display: -40 degrees C ~85 degrees C
Measured Medium Temperature Range	Silicone oil filling: -40 degrees C ~85 degrees C
Inert filling liquid: -20 degrees C ~80 degrees C
Operating Ambient Humidity Range	5%RH~100%RH@40 degrees C

Time Specifications

Total damping time constant: equals the sum of the electronic circuit component damping time constant and sensor capsule damping time constant

Electronic circuit component damping time: 0s~99s adjustable range

Overall response time: <= 90ms

Electromagnetic Compatibility Environment (current signal only)

No.	Test Item	Basic Standard	Test Condition	Performance Level
1	Radiated Disturbance (Enclosure)	GB/T 9254.1/CISPR22	30MHz-1000MHz	B (Note 2)
2	Conducted Disturbance (DC Power Port)	GB/T 9254.1/CISPR22	0.15MHz-30MHz	B (Note 2)
3	Electrostatic Discharge (ESD) Immunity	GB/T 17626.2/IEC61000-4-2	4kV (contact), 8kV (air)	A (Note 1)
4	RF Electromagnetic Field Immunity	GB/T 17626.3/IEC61000-4-3	10V/m (80MHz-1GHz)	A (Note 1)
5	Power Frequency Magnetic Field Immunity	GB/T 17626.8/IEC61000-4-8	30A/m	A (Note 1)
6	Electrical Fast Transient/Burst Immunity	GB/T 17626.4/IEC61000-4-4	2kV (5/50ns, 100kHz)	A (Note 1)
7	Surge Immunity	GB/T 17626.5/IEC61000-4-5	4kV (line-to-line) 2kV (line-to-ground)	A (Note 1)
8	Conducted Disturbance Immunity Induced by RF Fields	GB/T 17626.6/IEC61000-4-6	3V (150kHz-80MHz)	A (Note 1)
Note 1: For performance level A, performance remains normal within the technical specification limits Note 2: For performance level B, function or performance may temporarily decrease or be lost, but can recover automatically, actual operating status, storage and data remain unchanged

Power Supply and Load Conditions

Item	Operating Condition
Power Supply Voltage	HART communication protocol: 16.5V~36V DC
Intrinsically safe version: HART communication protocol: 18.5V~28V DC
Modbus-RTU/RS485: 12V~36V DC
Load Resistance	0Ω~2119Ω during operation 250Ω~600Ω for HART communication
Transmission Distance	< 1000m
Power Consumption
4mA~20mA	<= 500mW@24V DC, 20.8mA
Modbus-RTU/RS485	<= 240mW@24V DC, 10mA
